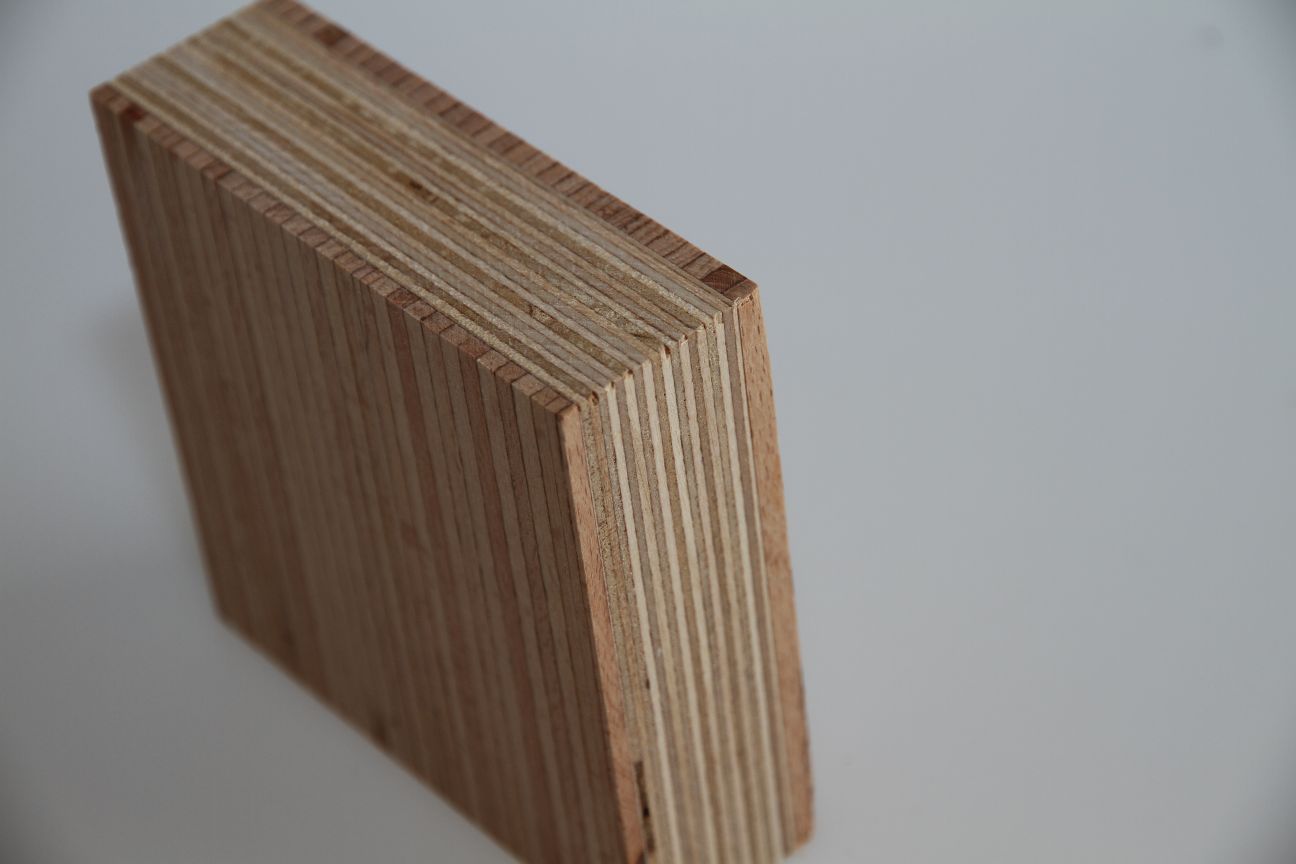

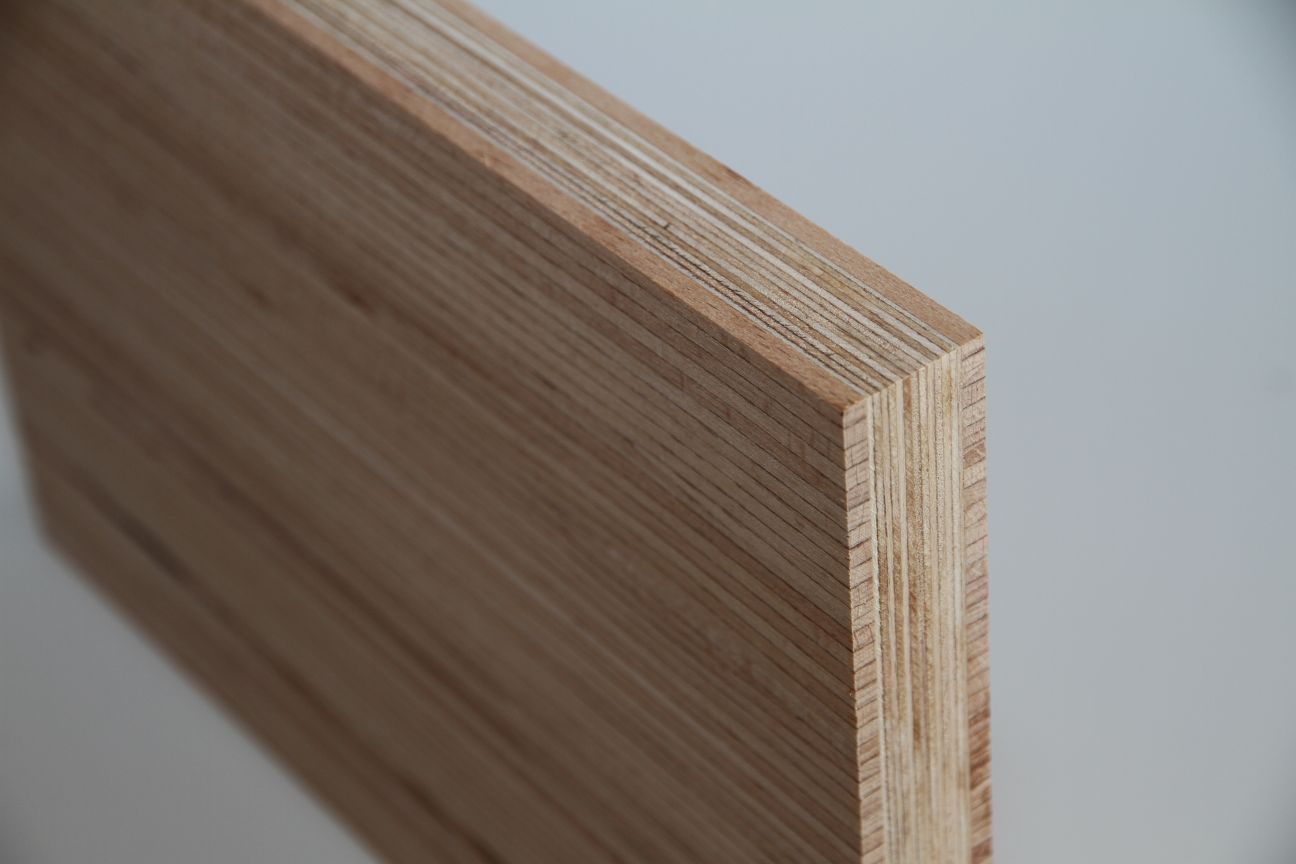

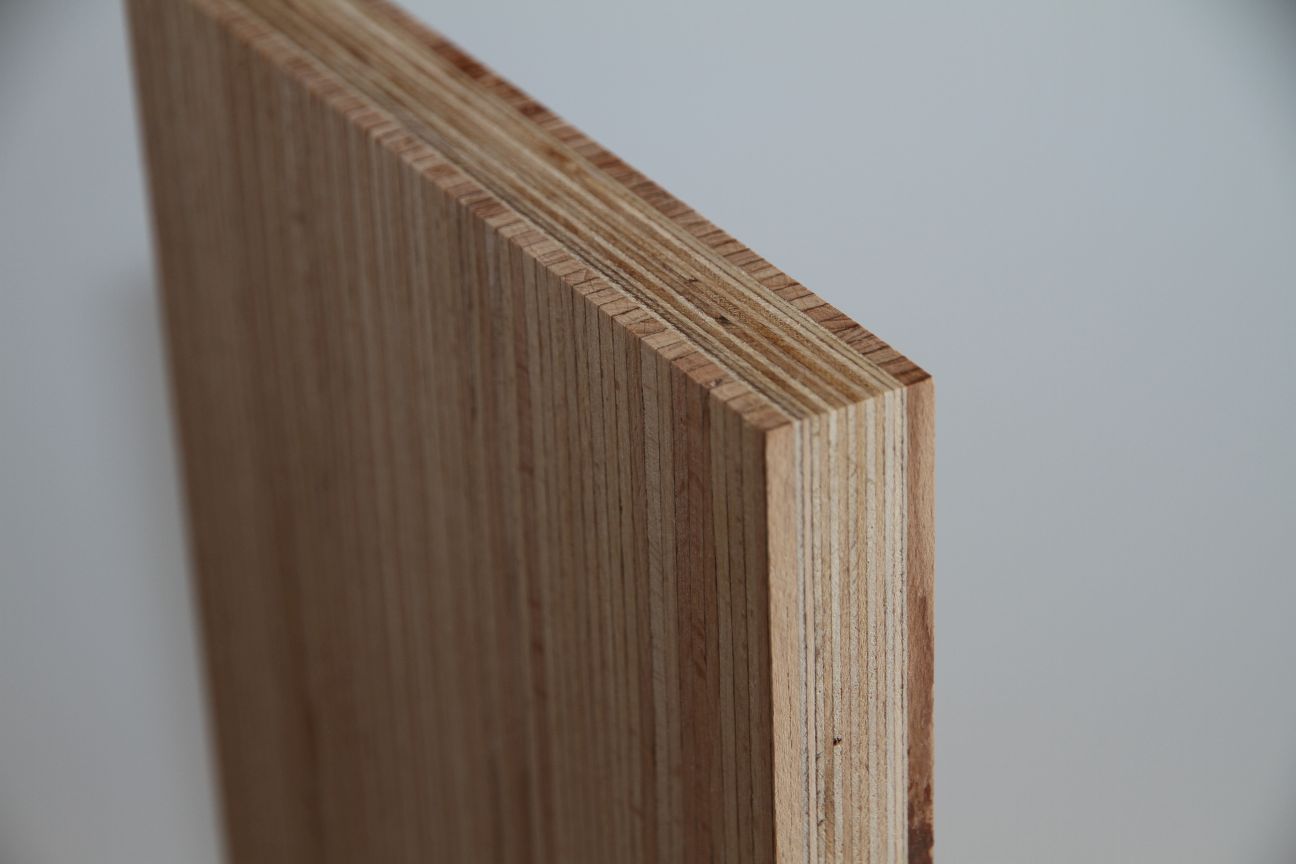

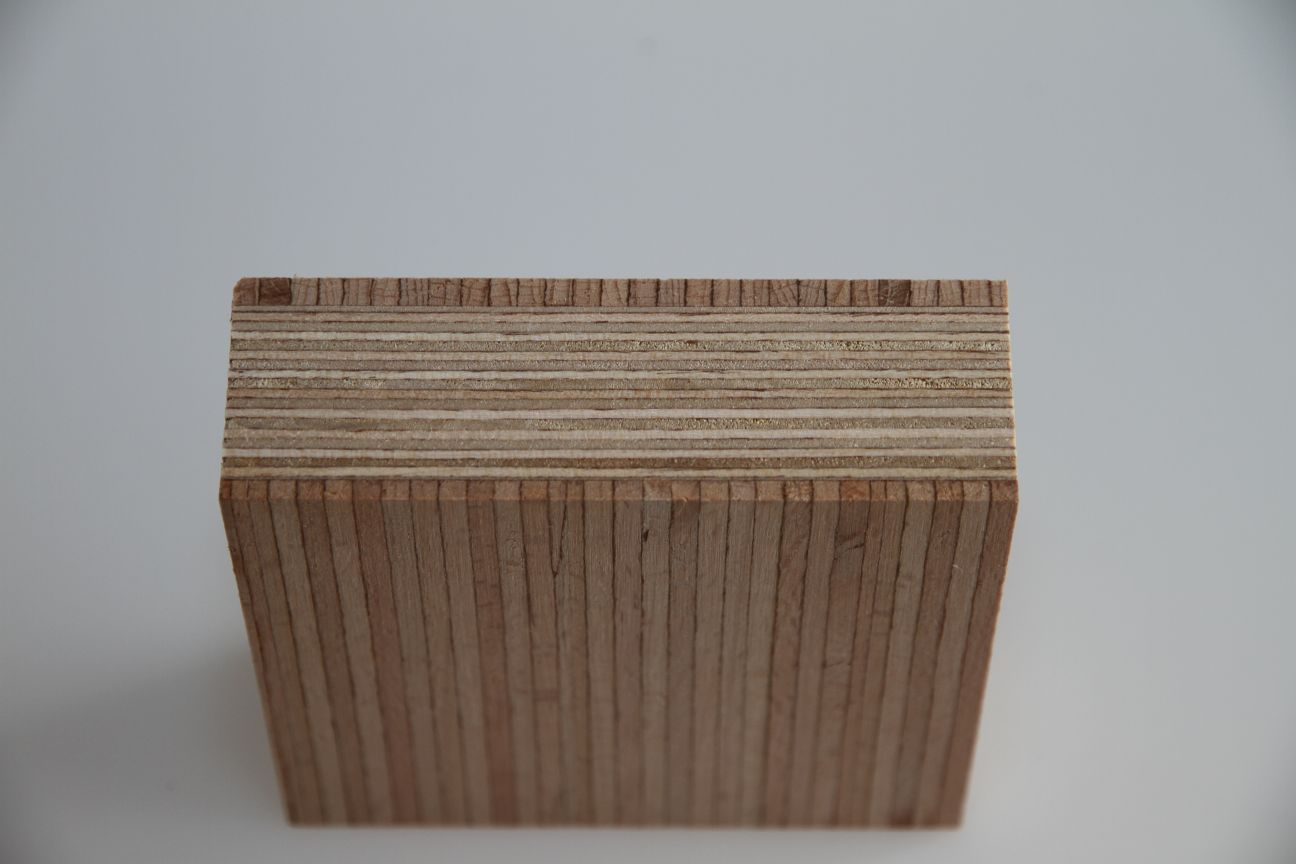

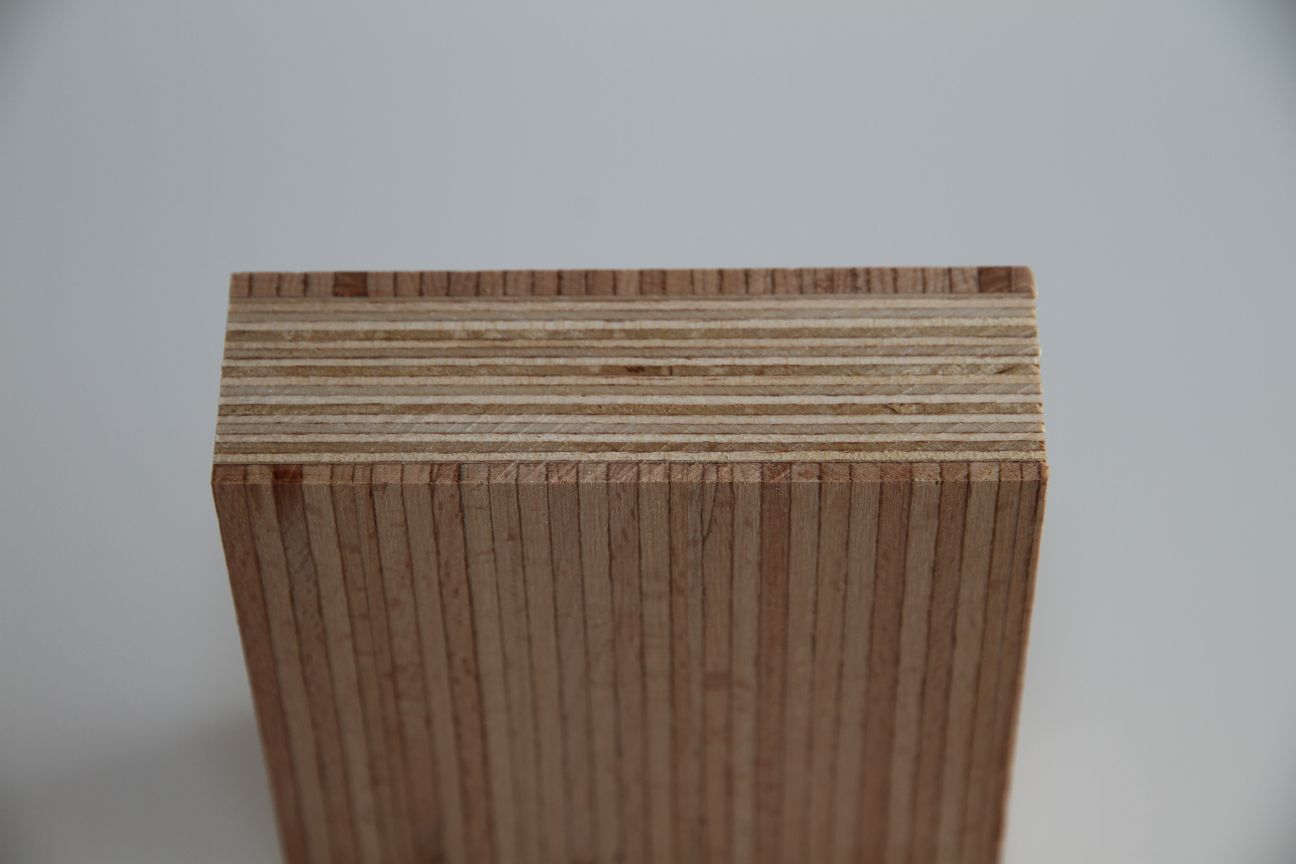

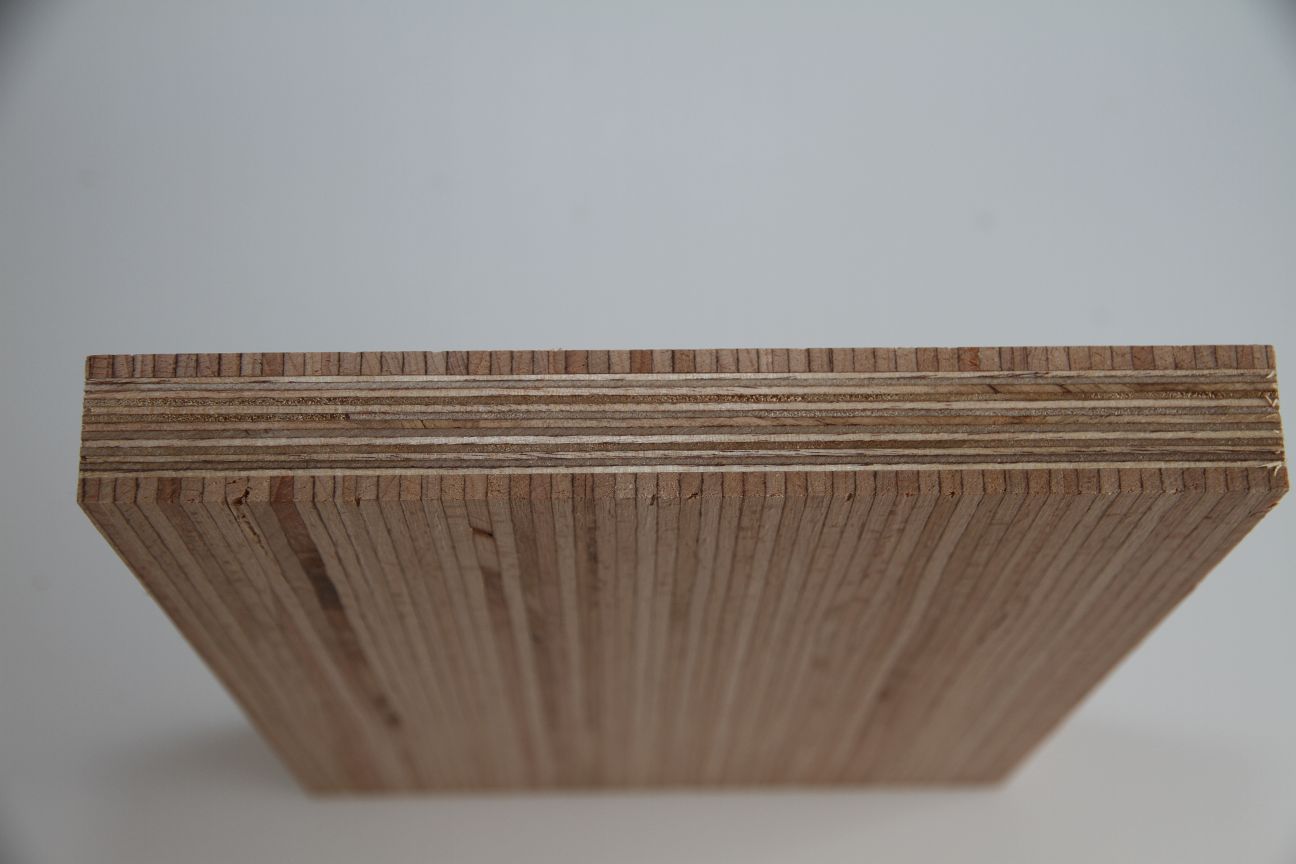

SVL Faced Panel on White Birch Multiply

The Eco-Core® SVL (Solid Veneer Lumber) Faced Panel is made of thin sheets of SVL laminated onto Eco-Core® White Birch Multiply. Solid Veneer Lumber is a contemporary look in laminated timber glued from upright longitudinal veneer layers of wood, approximately 3.0mm thick per lamination. They are manufactured using phenolic and moisture resistant PVA glues. For more information on Eco-Core® SVL, please refer to Eco-Core® SVL page.

The Eco-Core® SVL Faced Panel has been rated E0 for formaldehyde emission.

The Eco-Core® SVL Faced Panel is available in European Beech laminated on Eco-Core® White Birch Multiply. It can be supplied laminated on two sides or one side depending on the requirement.

Panel sizes are 2500mm x 1250mm x 25, 28, 34mm single sided or 2500mm x 1250mm x 14, 20, 26, 32, 38mm double sided laminated on White Birch Multiply long grain.

The SVL Faced Panel is supplied raw, sanded to grit 60. It is a cladding material where exposed edges will require finishing with an edge strip. In the raw product small holes and cracks can occur on the faces caused by open knots, cracks or similar. These holes and cracks are not classified as defects and should be puttied with timber putty prior to fine sanding. These panels are custom made and supplied in full sheets, please give allowance for cutting or fine sanding to exact measurement.

These panels are made to order so a longer lead time will apply.

The appearance of an Eco-Core® SVL Faced Panel sample is indicative only. Colour, grain and laminations can vary and are not classified as defects. A small timber sample does not completely represent the appearance of a larger surface of the same product.

The Eco-Core® SVL Faced Panel laminations run long grain and is sold without edge strips, these can be purchased separately, please contact us for details.

All Eco-Core® SVL products are supplied raw sanded to grit 60.

SVL is manufactured using phenolic and moisture resistant PVA glues, a full waterproof version is available on request.

This construction makes the thinly sliced SVL stable as there is less chance of the material bowing or moving. The advantage of using this product in some applications is that it can be supplied in over-all thinner but wider panels.

The advantage of using this product in some applications is that it can be supplied in over-all thinner but wider panels.

The Eco-Core® SVL Faced Panel laminated on White Birch Multiply is suitable for wall paneling, ceiling cladding, bedroom/office doors, cabinetry, table tops, furniture, joinery work, stair treads, flooring and more.

AttachmentSize
Technical Data Sheet179.79 KB
Material Safety Data Sheet291.09 KB
