SVL Faced Panel on Falcata Blockboard

The Eco-Core SVL (Solid Veneer Lumber) Faced Panel is made from approximately 3mm thick SVL laminated onto both faces of Eco-Core Falcata Blockboard. The SVL Faced Panel on Falcata Blockboard is suitable for use on over-sized doors.

Formaldehyde: 0.046 mg/m2/hr

Total Volatile Organic Compound: 0.006 mg/m2/hr

4-phenylcyclohexene: <0.003 mg/m2/hr

*The full certificate is available from Global Ventures Australia; please contact us to obtain a copy.

SIZE – AVAILABLE GOOD ONE SIDE OR GOOD TWO SIDES, LONG GRAIN

SINGLE CORE

3030mm x 1210mm x 22, 24, 27, 34mm

TRIPLE CORE

3030mm x 1210mm x 44, 46, 51, 56, 65, 79mm

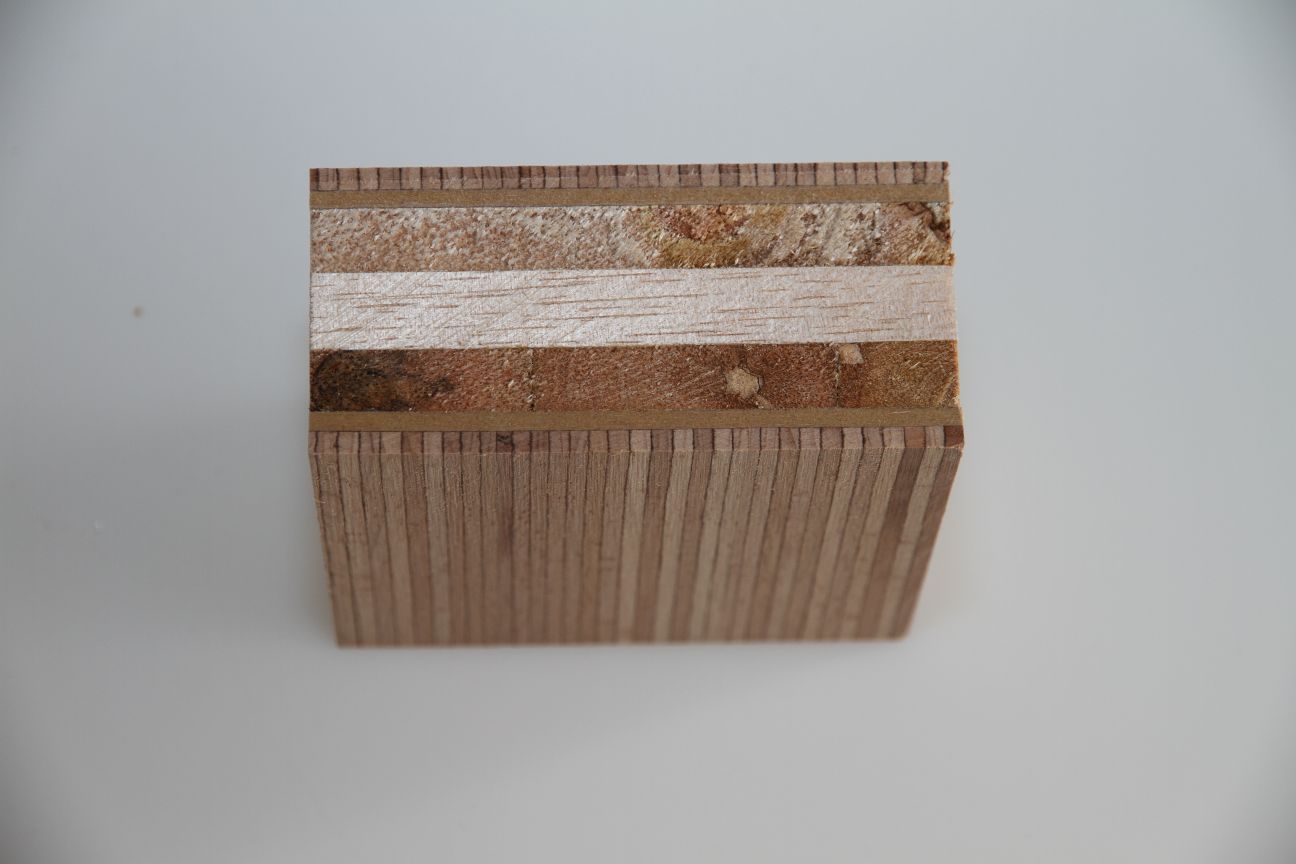

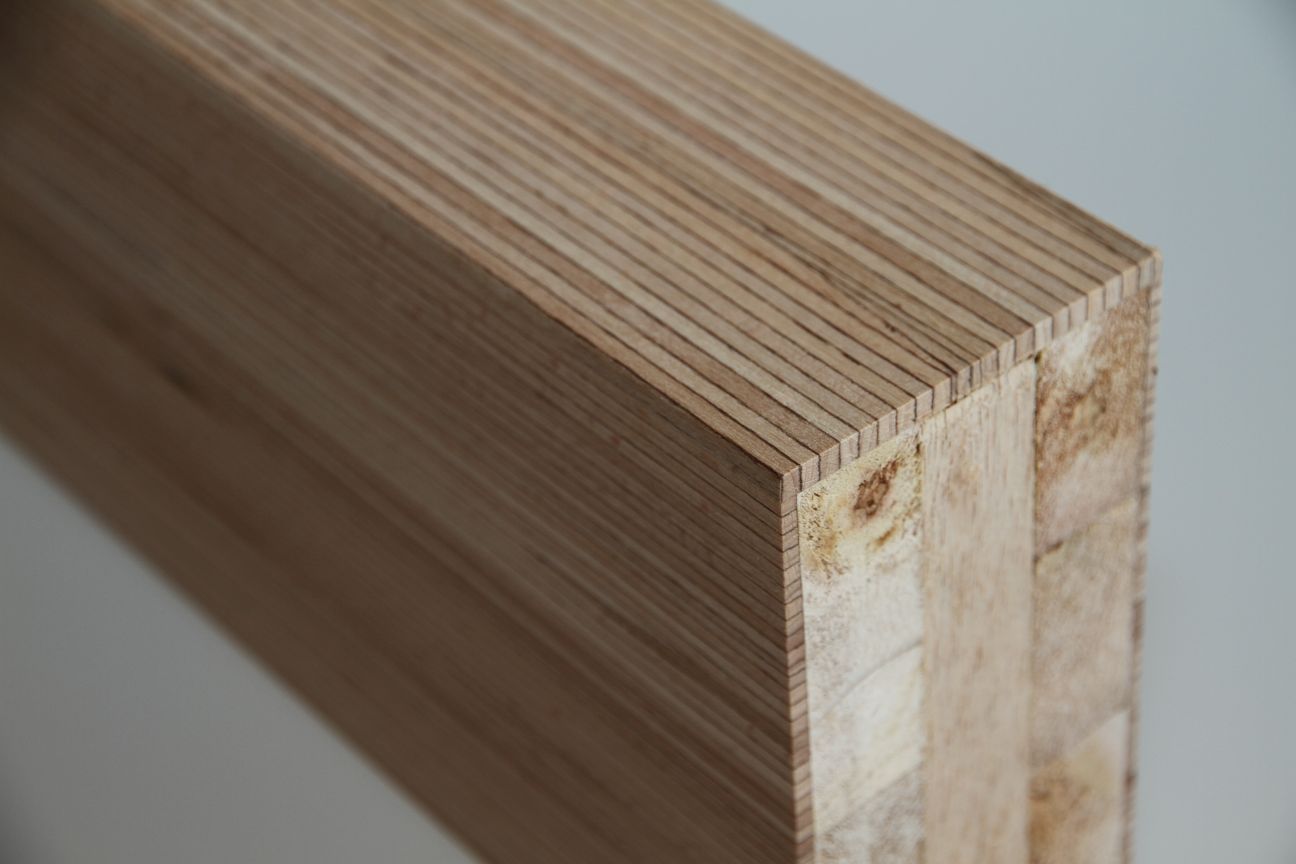

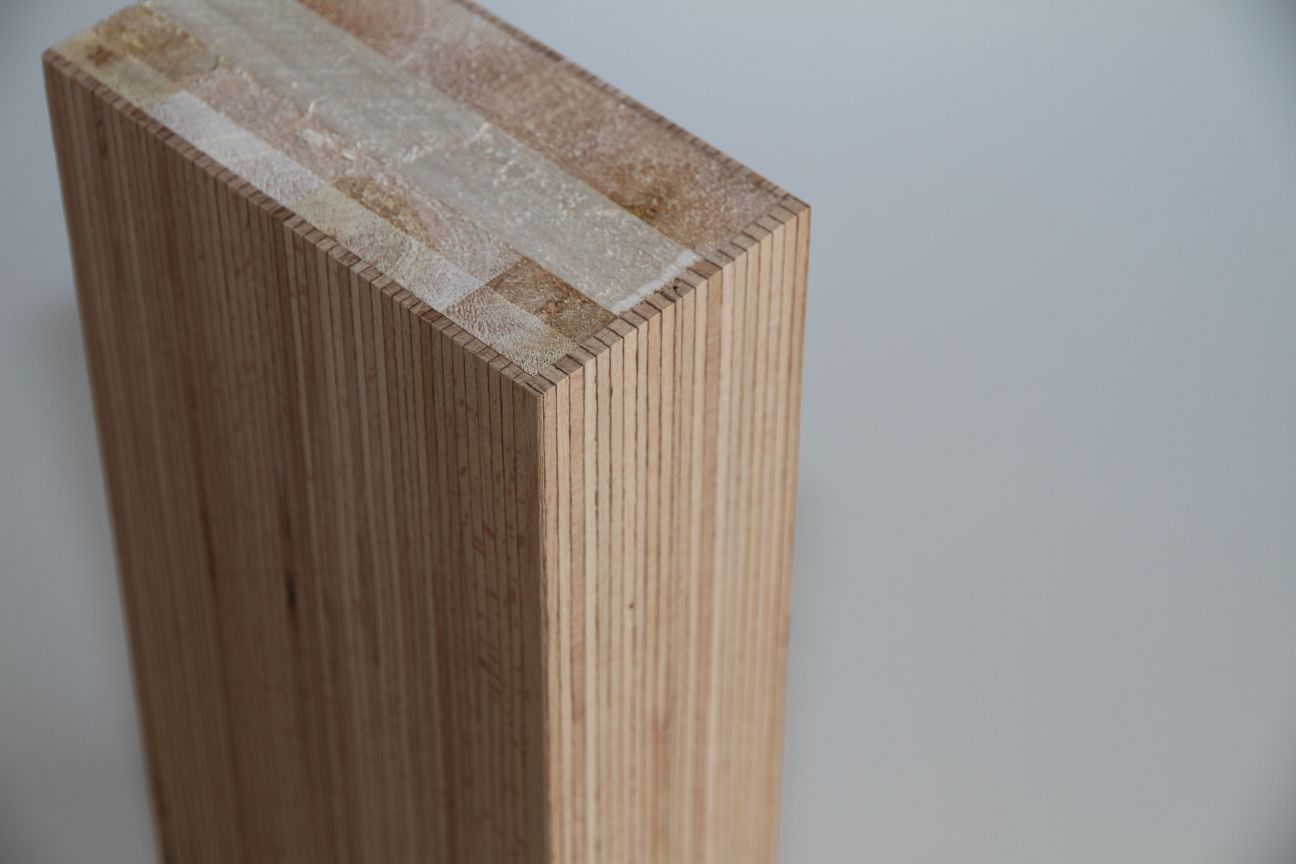

The 3mm SVL is pressed on a single core or triple core light-weight Eco-Core Falcata Blockboard.
The boards are light weight - from 350 to 430 kg/m3 depending on the thickness and overlay, it is approximately half the weight of MDF. The Falcata Blockboard hold screws very well and is strong and stable due to its construction.
The thicker boards are typically used for internal doors, sliding doors, pivot hinged doors, large conference and meeting tables, long span shelving or high quality joinery/furniture. The thinner panels are used for cabinetry, shelving, cladding etc.
AttachmentSize
Technical Data Sheet178.49 KB
Material Safety Data Sheet296.95 KB
